8.500 USD 400.070,35 TL

İlan No	1365
İlan Tarihi	27 Eylül 2024

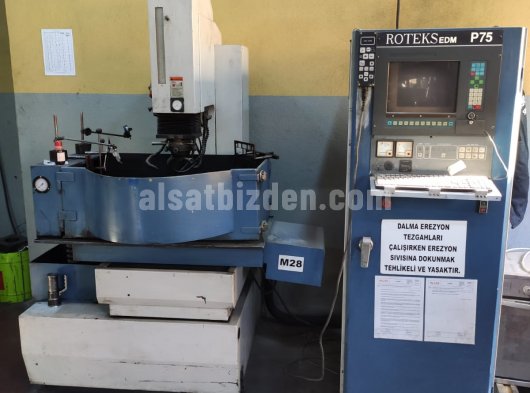

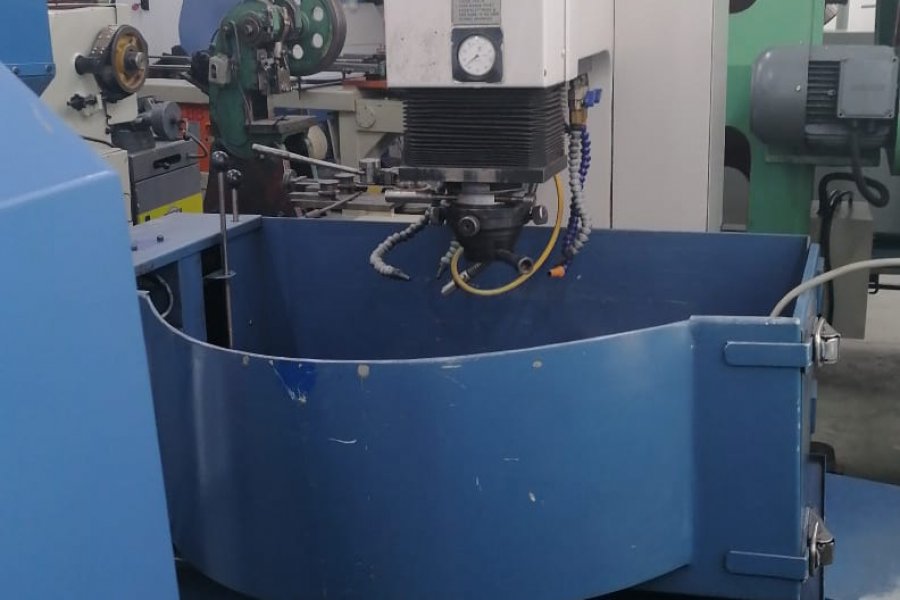

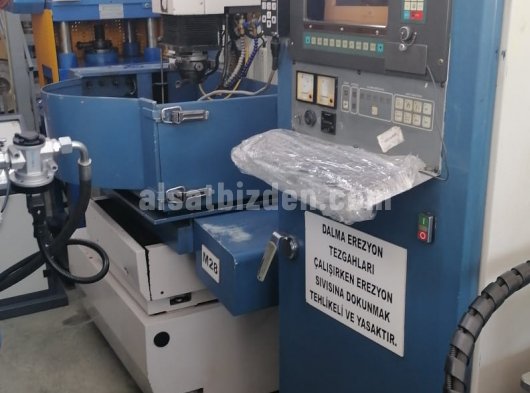

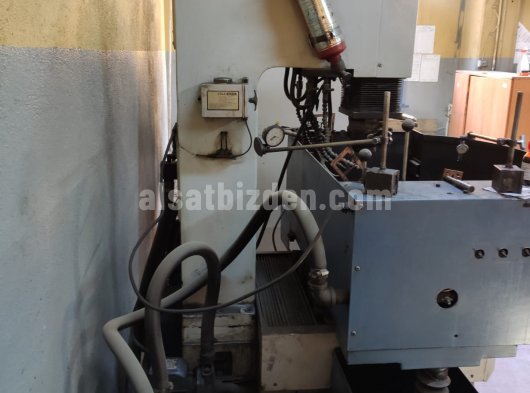

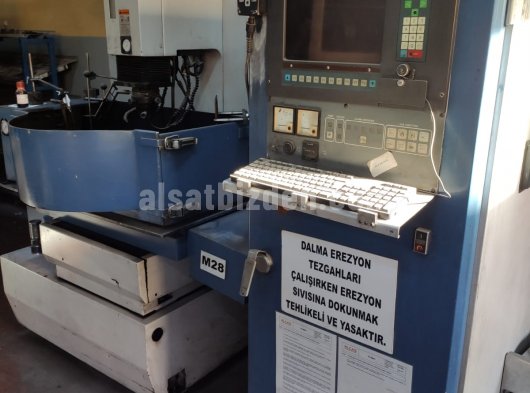

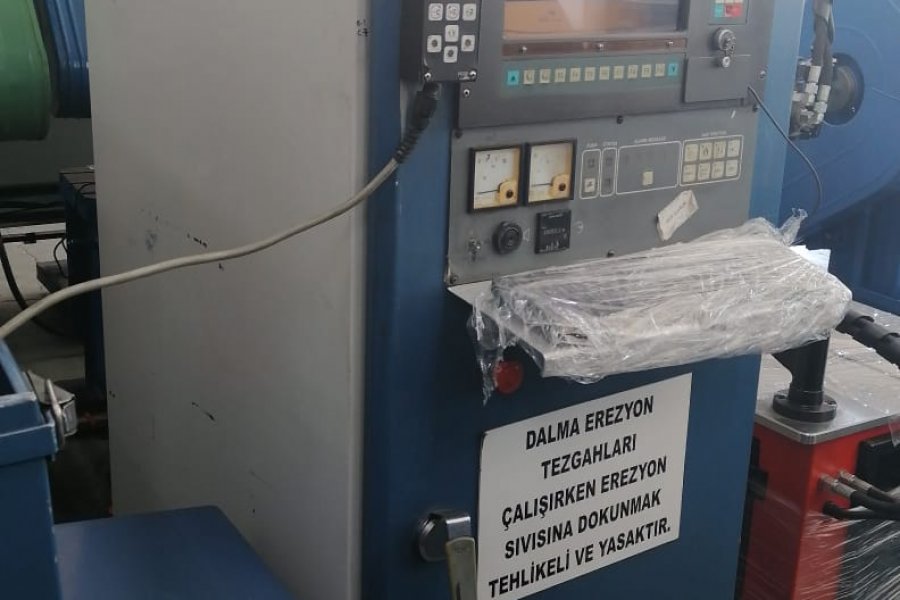

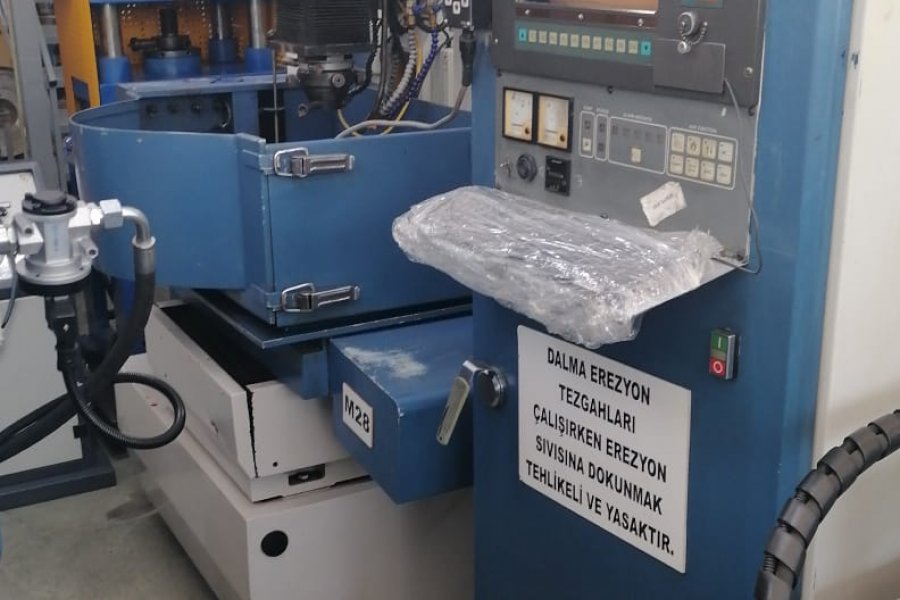

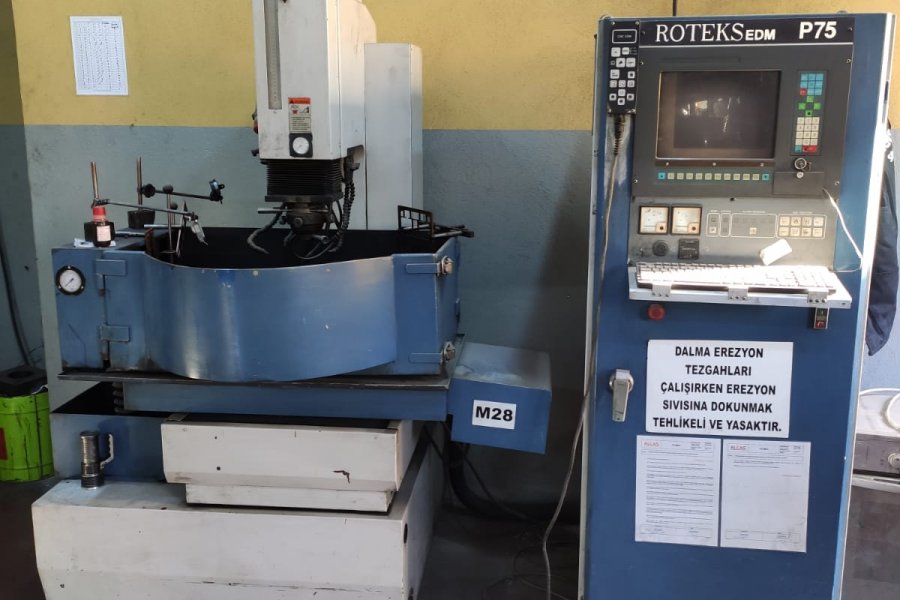

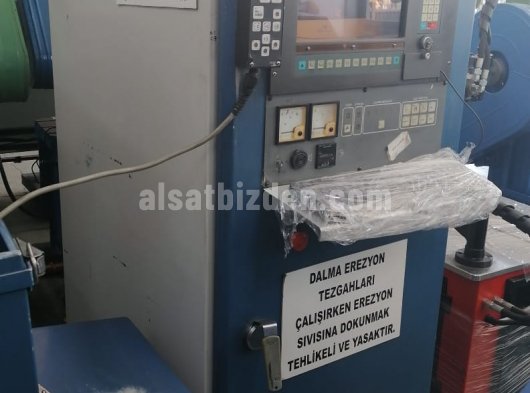

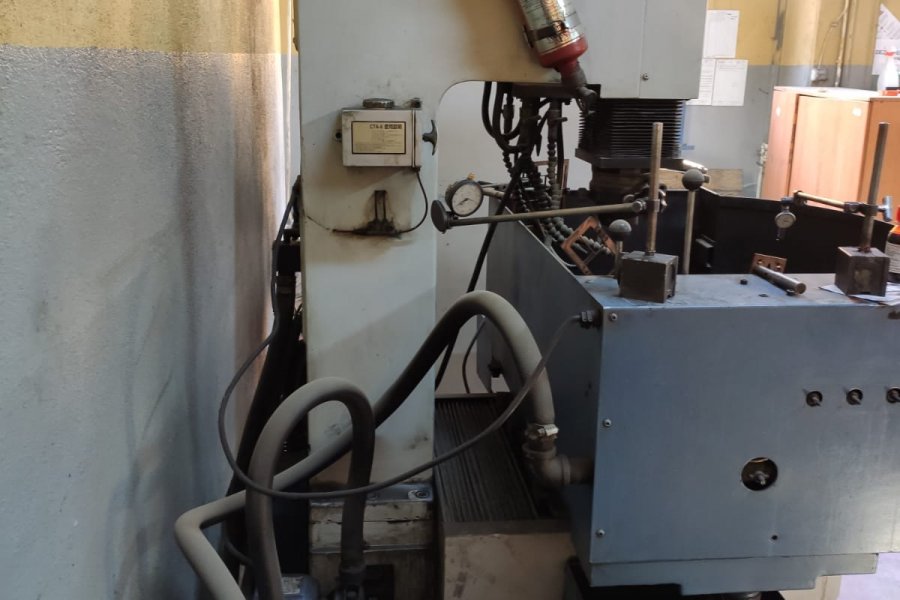

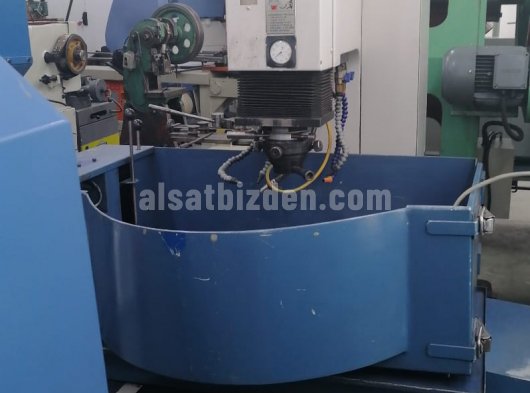

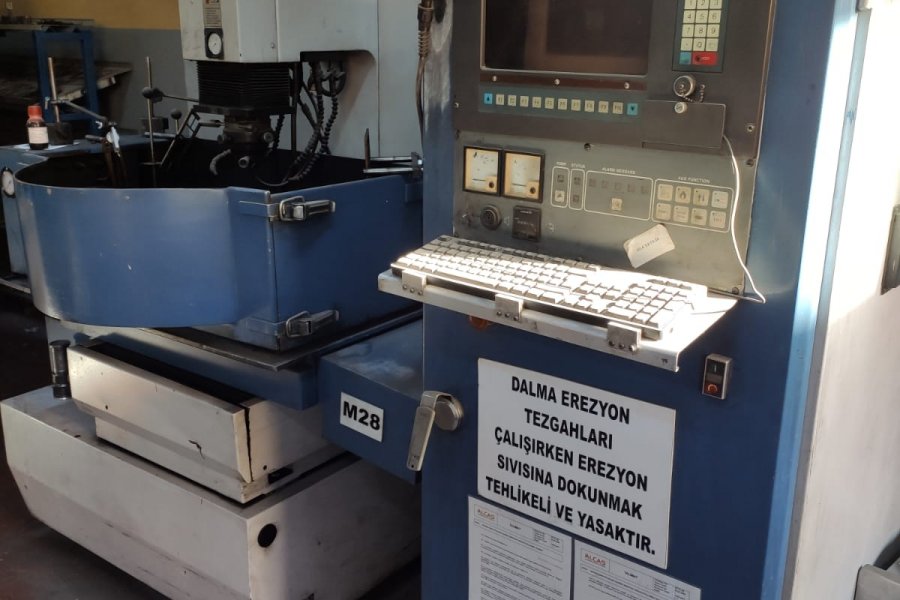

ROTEKS CNC DALMA EREZYON EDM P75

2004 MODEL 75 AMPER CNC

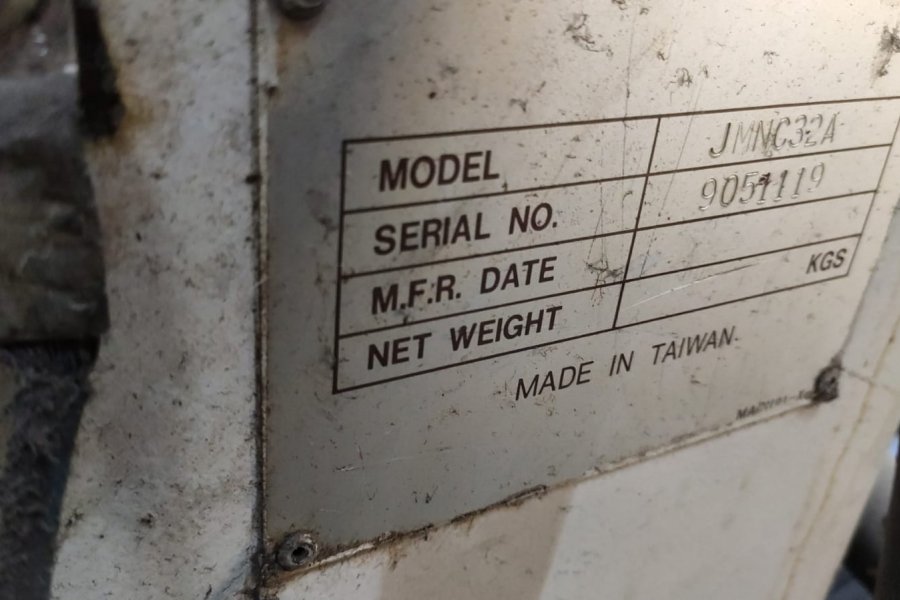

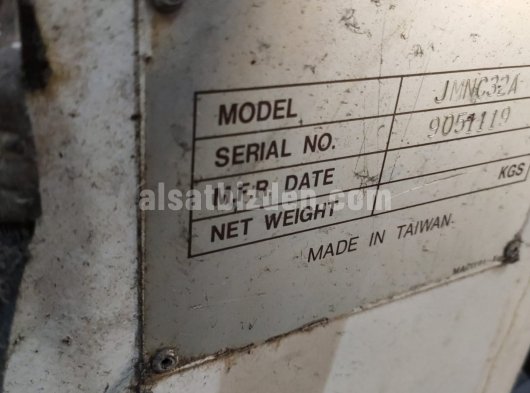

JMNC32A TAIWAN MALI

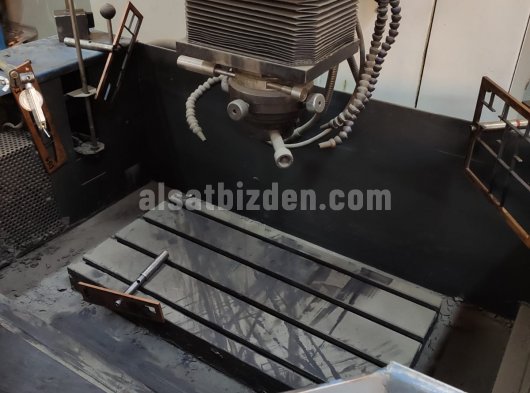

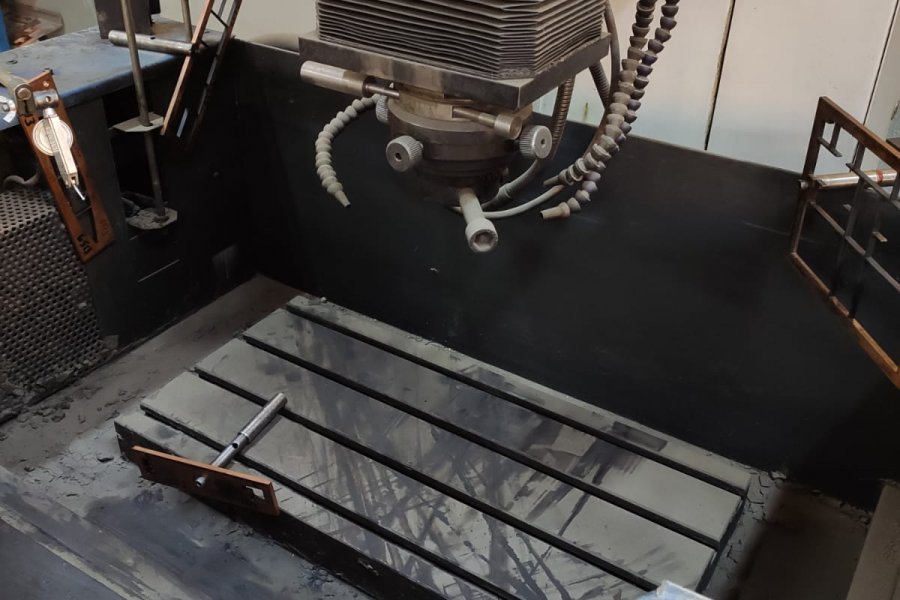

Work table size	mm	600 × 300
X travel	mm	300
Y travel	mm	200
Z travel	mm	300
Ram platen to work table	mm	167 ~ 467
Max. electrode weight	kgs	60
Max. workpiece weight	kgs	500
Work tank ( W × D × H )	mm	845 × 510 × 300
Weight of machine unit	kgs	1150
Machine Outside dimensions ( W × D × H )	mm	1675 × 1200 × 2075
Max. Machining Current	A	50
Total Power Input	KVA	4.5 / 6.5 ( with JMNC53P )
Max. Metal Removal Rate	mm3 / min	390
Electrode Wear Ratio	%	0.20
Best Surface Roughness	µm Ra	0.20 ( without powder ) < 0.20 ( without powder )
Net Weight	kgs	320
Outside Dimensions ( W × D × H )	mm	680 × 1070 × 1820
Dielectric tank capacity	L	280
Dielectric tank pump	HP	0.5 HP × 1
Dielectric tank net weight kgs		built-in
Dielectric tank filter method		Paper filter
Dielectric tank outside dimensions ( W × D × H )	mm
